The Technology Coaching Board Analyzer software is a unique
package that allows to easy evaluate key corrugated board
scanner, scale and special designed scanner adaptor to scan the edge of the
board allows to measure the following properties of corrugated board:
•
Board grammage (g/m²
•
Board Thickness
•
Flute count
•
Flute type
•
Take-up factor
The following screen shot shows the section for measuring the board grammage.

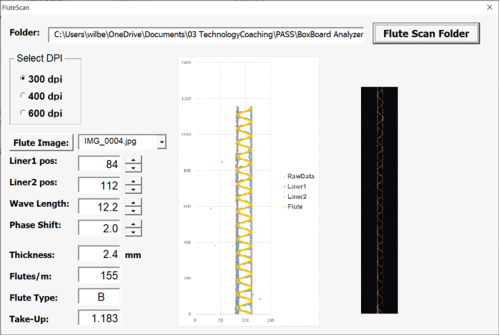

The next screen shot shows the section for determining board thickness, flute
count, board grade and take up factor.
The advantages of using Board Analyzer:
•
Any size of a board sample can be used for evaluating grammage thus no
special circular cutter is needed
•
All measured data is stored organised in one location
•
The evaluation of board thickness, flute count, grade, and take-up factor
can be done on the same sample as used for edge crush (ECT) as it is non
destructive. This allows a direct correlation between edge crush and e.g.
take-up factor
Contact Technology Coaching if you want more information or a quotation.
The Technology Coaching Board Analyzer software is a unique
package that allows to easy evaluate key corrugated board
properties
The Board Analyzer image analysis software in combination with a flat-bed
scanner, scale and special designed scanner adaptor to scan the edge of the
board allows to measure the following properties of corrugated board:
•
Board grammage (g/m²
•
Board Thickness
•
Flute count
•
Flute type
•
Take-up factor
The following screen shot shows the section for measuring the board grammage.
The next screen shot shows the section for determining board thickness, flute
count, board grade and take up factor.
The advantages of using Board Analyzer:
•
Any size of a board sample can be used for evaluating grammage thus no
special circular cutter is needed
•
All measured data is stored organised in one location
•
The evaluation of board thickness, flute count, grade, and take-up factor
can be done on the same sample as used for edge crush (ECT) as it is non
destructive. This allows a direct correlation between edge crush and e.g.
take-up factor
Contact Technology Coaching if you want more information or a quotation.
